Key Features
Multiple Positioning Modes
Supports CORS、PPP and single RTK station mode.
High Integration
"Three components + one wire" integrated design.
Excellent Performance
± 2.5cm accuracy; dustproof, waterproof, shockproof.
Intelligent Design
Easy to use, remote assistance and OTA upgrade supported.
Multiple Operation Modes
Multiple operation modes and also can be expanded.
Rich Function
The AB line can be reused and work data can be shared.
Supporting service
XStar Real-Time GNSS PPP Correction Service
1.Full Constellation:
Support Beidou,GPS,GLOANASS and Galileo systems
2. High precision:
Horizontal Accuracy≤2.5cm,Vertical Accuracy≤5cm
3. Fast convergence:
Initialization time≤5 min(the fastest<50s)
4. Wide coverage:
The Asia-Pacific region covered
Product parameter

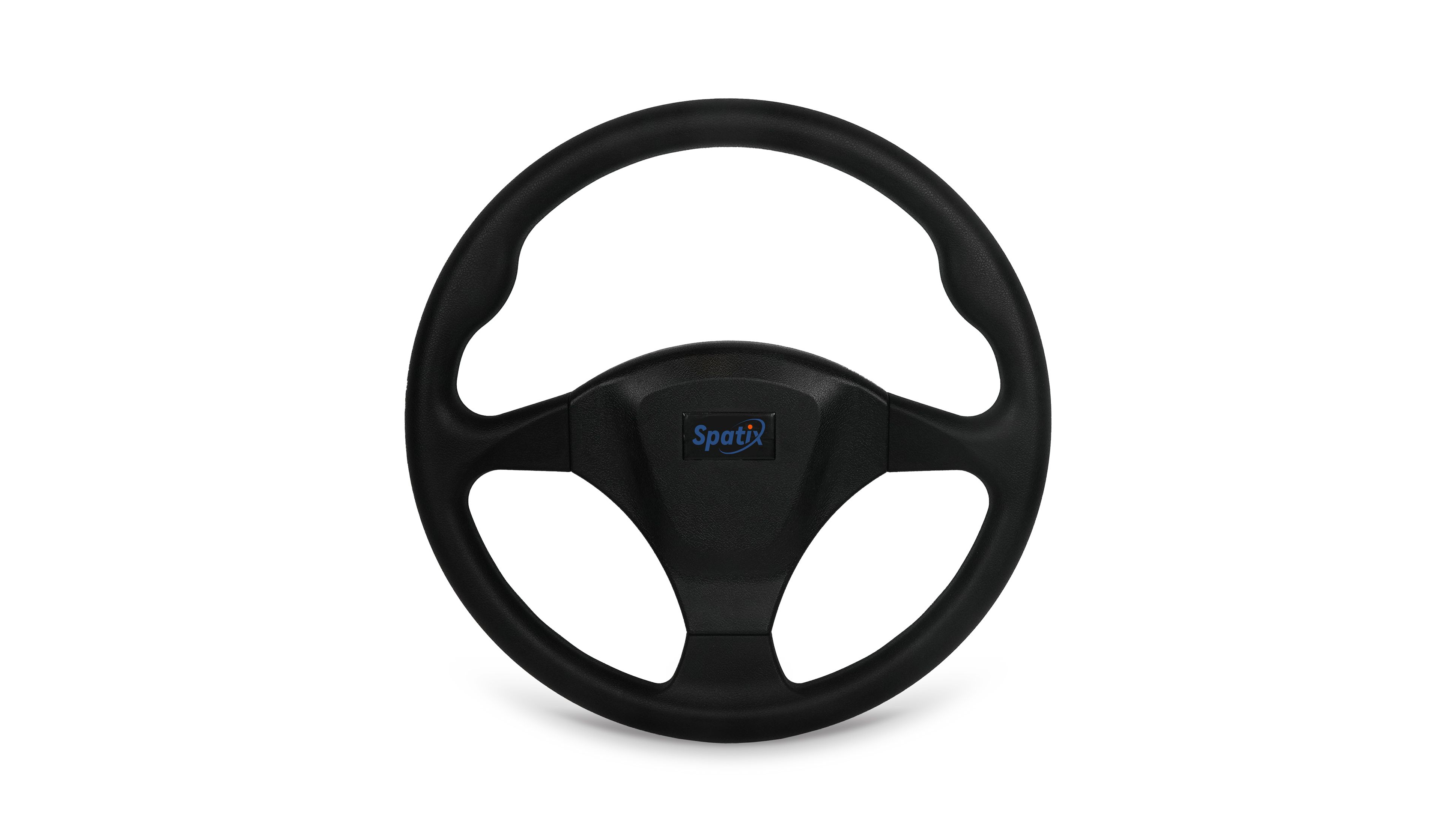

| Electrical Steering Wheel | Performance | ||
| Torque | 7N.m | Linear autopilot deviation | ≤±2.5 cm |
| Maximum Torque | 16N.m | Straight line spacing deviation | ≤±2.5 cm |
| Motor height | 86.5 mm | Integrated IMU modulesHeading accuracy | <0.2°rms |
| Wheel diameter | 410 mm | Roll/Pitch accuracy | <0.2°rms |
| Display | Operating Speed | 0.1~15km/h | |

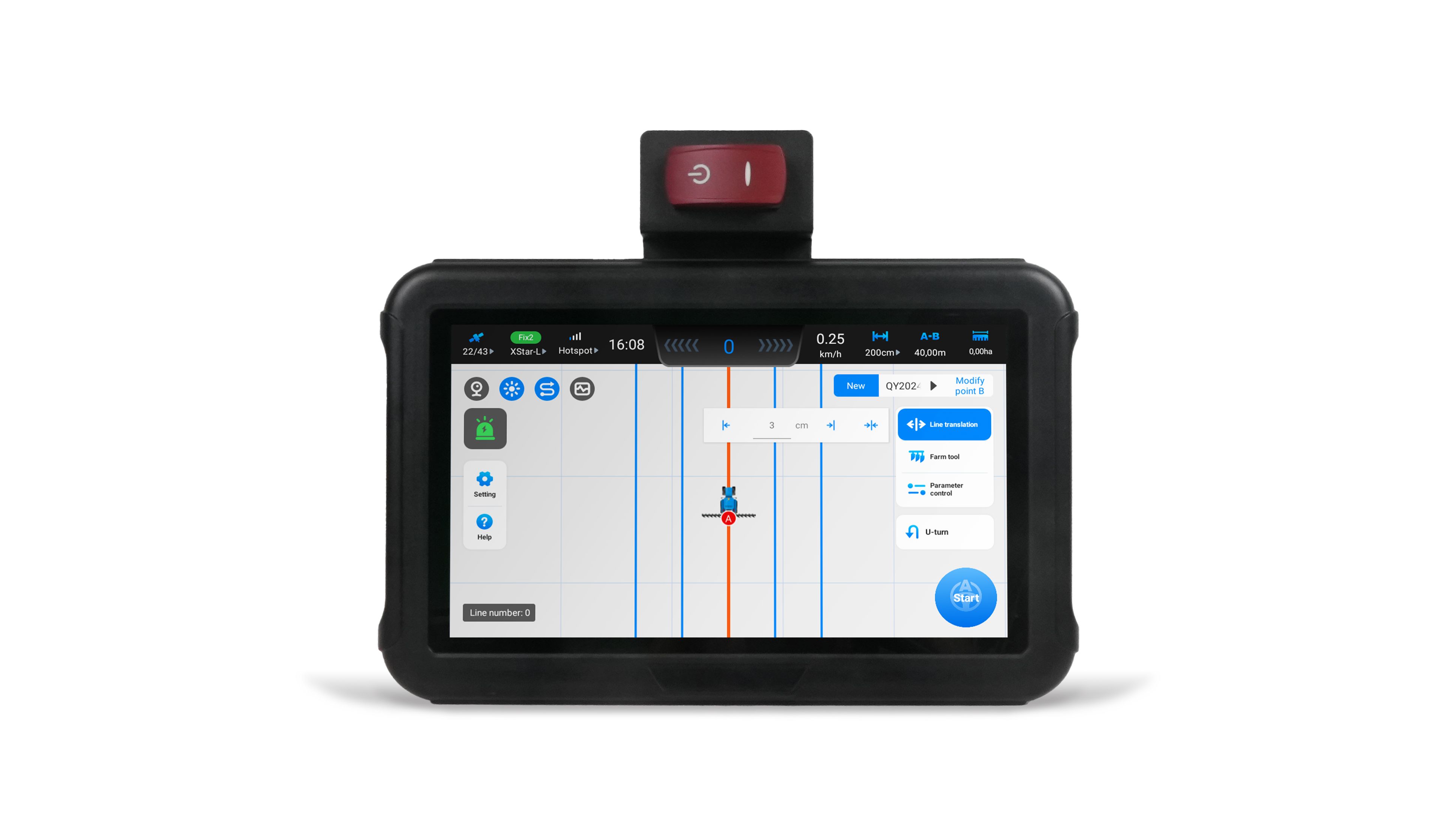

| Display | 10.1"touch screen, Android 10 | Initialization | <3s(Speed>1.8km/h) |
| Dust and waterproof | IP65 | Positioning Mode | PPP-AR,PPP-RTK,RTK |
| Integrated ECU | RTK accuracy | Horizontal:8 mm+0.5 ppmCEPV ertical:15mm+0.5 ppm CEP PPP | |
| Constellations | GPS/BDS/Galileo/GLONASS/ SBAS/QZSS/L-BAND | PPP accuracy | Horizontal:<1.5cm CEPV ertical:<2.5cm CEP |
| GNSS Antenna | Built-in | Velocity accuracy | 0.05 m/s CEP |
| Physical | Convergence time | RTK<1 min | |
| Power | 9V DC to 36VDC | PPP-AR<15min | |
| Environment | Operating:-20℃~+70℃ Storage:-40℃~+85℃ | PPP-RTK<3min | |
